Refractory linings fail in several distinct ways, and each failure mode requires a different response. Recognizing which one is occurring is the first step toward solving the problem.
Thermal shock is one of the most common causes of refractory failure. It occurs when the lining is subjected to rapid temperature changes. The surface of the refractory expands or contracts faster than the interior, creating stresses that can crack or spall the material. Thermal shock is particularly damaging in applications where furnaces are cycled on and off frequently or where cold charges are added to a hot furnace.
Chemical attack is another major failure mode. Molten slags, glasses, and gases react with the refractory, dissolving its components and eroding the lining. The rate of attack depends on the chemistry of both the refractory and the process material. An acidic slag will destroy a basic refractory, and vice versa. Even a compatible chemistry can cause gradual erosion over time.
Erosion is the mechanical wear of the refractory by moving solids, liquids, or gases. In applications where the furnace charge moves, or where gases flow at high velocity, the refractory surface can be worn away. Abrasion-resistant refractories are available for these applications, but they must be specified correctly.
Mechanical stress can also cause failure. Refractories are brittle, and they do not tolerate structural loads well. If the lining is not properly supported, or if the furnace shell deforms, the refractory can crack or collapse. Thermal expansion must be accommodated in the design, or the lining will fail as it heats up.
Inspection: What to Look For and When
Regular inspection is the key to catching refractory wear before it causes a failure. Inspections should be performed during scheduled shutdowns and, where possible, during operation using thermal imaging or other non-destructive techniques.
Visual inspection during shutdowns is the most basic and most important method. The inspector looks for cracks, spalling, discoloration, and areas of erosion. Cracks that are wider than a few millimeters, or that penetrate deeply into the lining, are warning signs. Spalling, where pieces of the lining have broken away, indicates thermal shock or mechanical stress. Discoloration can indicate chemical attack or overheating.
Thermal imaging during operation can reveal hot spots on the furnace shell, which indicate areas where the lining has thinned or failed. These hot spots are often the first indication that a lining is approaching the end of its life.
Measurements of lining thickness, taken at regular intervals, allow the maintenance engineer to track wear rates and predict when replacement will be needed. This data is invaluable for planning shutdowns and ordering materials in advance.
Extending Refractory Life
Refractory life can be extended through several practices that reduce the stresses on the lining and slow the rate of wear.
Controlled heating and cooling are essential. Furnaces should be heated and cooled gradually, following a schedule that allows the refractory to expand and contract without cracking. Rapid temperature changes should be avoided whenever possible. When a furnace must be cooled quickly, the rate should be controlled to minimize thermal shock.
Proper operation also extends refractory life. Maintaining the correct temperature and atmosphere reduces chemical attack. Avoiding overloading and reducing the velocity of gases and liquids reduce erosion. Keeping the charge clean and free of contaminants reduces the risk of chemical attack by unexpected materials.
Preventive maintenance, including patching small cracks and repairing worn areas before they become major problems, can extend the life of a lining significantly. Gunning mixes and castables are available for repairs, and these can be applied during short shutdowns to address localized wear.
Selecting the Right Material for Maintenance and Repair
When a refractory lining needs repair or replacement, selecting the right material is essential. The selection process begins with the operating conditions. The maximum temperature, the chemical environment, the thermal cycling pattern, and the mechanical loads all determine which material will perform best.

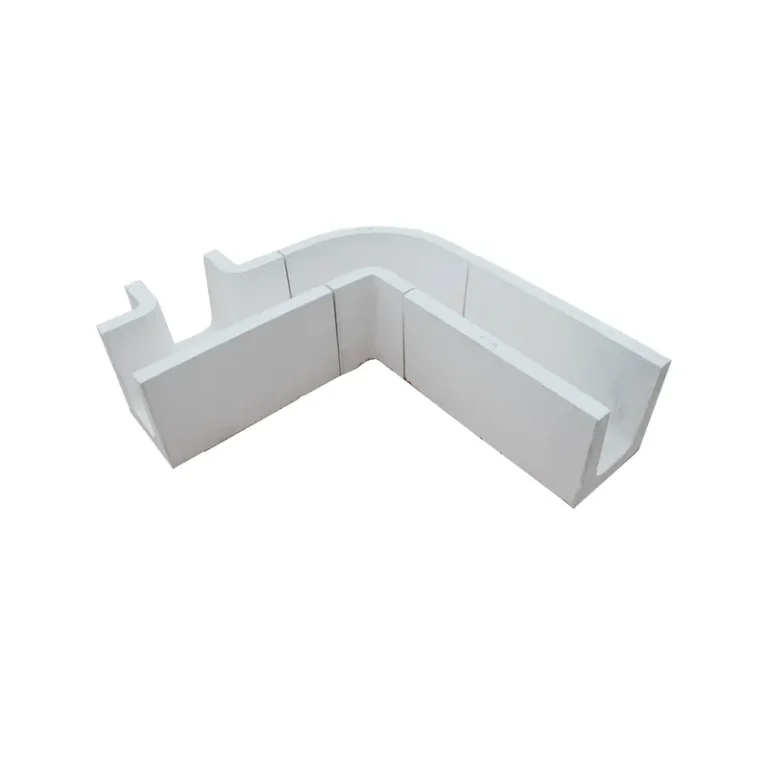

The form of the material also matters. Bricks are used for applications where precise geometry and high mechanical strength are required. Castables are used for complex shapes and for repairs where speed of installation is important. Gunning mixes are used for repairs and for lining large areas quickly. Ramming mixes are used for applications where high density and strength are required.
The supplier’s capabilities matter as well. A good supplier can provide material certifications, installation guidance, and technical support. For critical applications, the supplier should be able to provide references from similar installations and to assist with failure analysis when problems occur.
The Bottom Line
Ceramic refractory materials are consumables, and they will eventually need to be repaired or replaced. The maintenance engineer who understands how they fail, how to inspect them, and how to extend their life is better equipped to keep furnaces running and avoid unplanned downtime. The difference between a well-managed refractory program and a neglected one shows up in the maintenance budget and in the production schedule. It is worth the attention.
